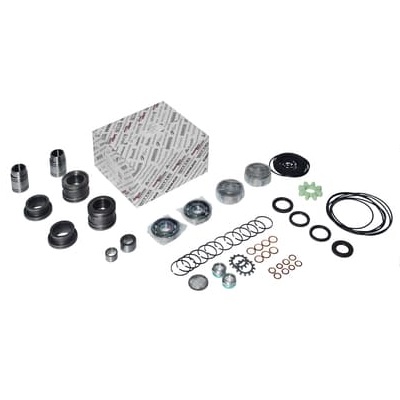

Elmo Rietschle VSI300 Repair Kit

1027040104

Genuine Elmo Rietschle VSI300 Repair Kit.

Includes all parts for a general repair of VSI300: 1027040104

MESH DS=0,56 LMW=1,12
GASKET SEAL RING, 3/4"
ANGULAR BALL BEARING 40X90X36,5
O-RING
SLEEVE RING, VLR-150
SEAL A 40x55x7 75 585 BAUM 3SL X7 VITON
O-RING 240.00X 3.00 VITON
O-RING 250 x 3 EPDM
O-RING
O-RING 340.00X 3.00 VITON
OIL SIGHT GLASS, 3/4"
SLEEVE 40X 50X 80
PISTON RING
PISTON RING
O-RING 78.00X 3.00 VITON
SEAL A 50X 68X 8-75 FKM 585 BAUM X7
O-RING
GASKET COVER PLATE
O-RING 45,00X 2,50 VITON
BEARING
O-RING 285.00X 3.00 VITON
O-RING
O-RING
O-RING, INOVAC
O-RING
O-RING
O-RING 80,00X 3,00 VITON
MESH FILTER SCREEN, VSI-100
GASKET NOVATEC HPN
COUPLING ROTEX 38 Z-KRANZ 64 SHD
LOCK CHAMBER VSI 100 / 300
O-RING 320 x 3 EPDM
WASHER A 12X 18,0X1,5 CU
LOCK WASHER MB 6 ST
GASKET NOVATEC HPN
WASHER A 17X 23,0X1,5 3/8" CU
WASHER A 10X 16,0X1,0 1/8 CU
RETAINING RING, 70 x 2.50mm
MESH DISC, INLET, VC 202/303
