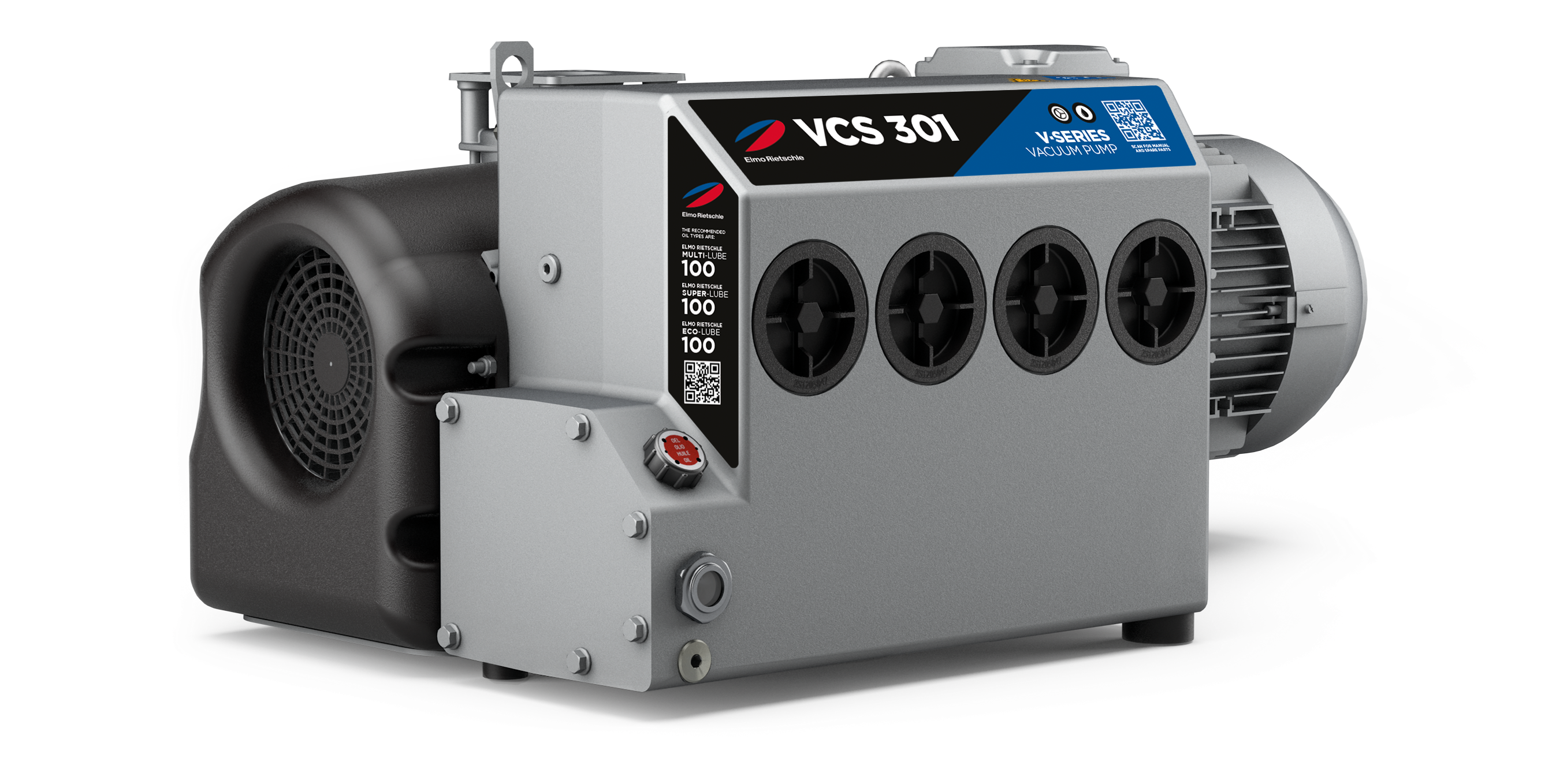

The latest evolution in rotary vane design has arrived with the new VCS range in the Elmo Rietschle V-Series. With volumes capacity starting from 100 m3/hr up to 360 m3/hr. The new VCS has been developed to improve the overall performance of this tried and tested rotary vane vacuum pump technology. This evolutionary design provides our lowest cost of ownership for an oil lubricated rotary vane vacuum pump, whilst weight, noise and size reductions make it easily adaptable and retrofitable.
V-VCS | Vane Pumps With A Revolutionized Design
The VCS models feature oil lubricated rotary vane vacuum pumps with capacities ranging from 30 to 903 cfm and an ultimate vacuum of 29.91 inHg. With enhanced design features, backed by decades of Elmo Rietschle expertise, VCS provides the lowest cost of ownership for an oil lubricated vane pump while weight, noise, and size reductions make them easily adaptable and retrofittable to a wide range of OEM machines.
Benefits For Diverse Applications
This evolutionary design offers:
Reduced size and weight
Lower heat and noise emissions
Lower lifetime costs with a reduction in filter requirements with no drop in oil particulate removal whilst consequently reducing maintenance requirements
Reduced oil consumption also combines to make this machine one our most eco-friendly oil lubricated machines available
Design for the OEM market, VCS models can be easily retrofitted into most machines
VCS oil lubricated rotary vane pumps can be used in a variety of industrial applications including packaging, plastics, pharmaceuticals, and food processing. There are options for customization to fit specific operational requirements. Contact Elmo Rietschle for help choosing the right model to fit your needs.
VCS Technical Information:
Volume flow capacities ranging from 30 to 903 cfm (100 to 360 m3/hr)
Ultimate vacuum 0.5 mbar (abs.)
Noise emissions as low as 67 dB(A)
Weight without motor 100 kg
IE3 and IE4 motor variants are available including 4 kW, 5.5 kW and 7.5 kW as required
Fitted as standard with flange motor
Bearings on both sides of the rotor
Oil/air heat exchanger, fine mesh filter, vacuum non-return valve on suction side, gas ballast valve, protection cover and oil separator are standard
