  3. A ‘OneAir’ solution from Gardner Denver for the aquaculture market with Gael Force Group

En OneAir-lösning från Gardner Denver för vattenbruksmarknaden med Gael Force Group

Företaget Gael Force Group, som tillverkar marin utrustning, teknik och ingenjörskonst, har ingått ett treårigt partnerskap med Gardner Denver för alla sina behov av industriell luft.

Application Details

Gael Force is a specialist in the design and manufacture of highly engineered fish feed barges and systems. Requiring an industrial air supplier that could provide low pressure, high volume blowers and compressed air technology for a range of applications, the organisation has agreed to an exclusive three-year agreement with Gardner Denver.

The aquaculture sector has been the fastest growing food production market for the last 20 years. Due to this increased demand, the opportunity for feed barges is only set to grow. Gael Force has already built more than 80 feed barges to date, with the largest offering a capacity of up to 450 tonnes. Each barge typically features between four to six feed lines, however Gael Force is also constructing barges that are capable of running eight feed lines in total.

Delivered by a pneumatic conveying system, these feed lines require low pressure, high volume technology to ensure the air flow rate remains at a suitable level when supplying the feed to the pens holding the fish. Pellets are susceptible to damage and can be lost when being conveyed from the feed barges to the pens. As a result, the pressure of the air being delivered is absolutely critical.

A 'OneAir' Solution

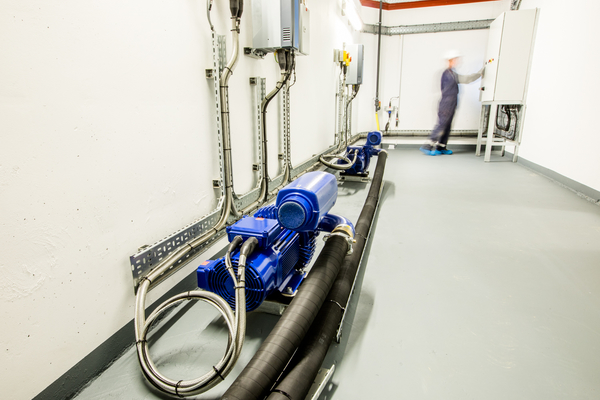

Elmo Rietschle Blowers on a Aquaculture Barge
As part of the agreement, Gardner Denver is supplying a range of rotary lobe blowers and side channel blowers for this application. The units’ compact design, small footprint, low noise emissions and performance levels make these ideally suited for fish feed conveyance. These machines are also offered with motor and frequency convertors, so operators of these barges can ensure efficiency levels remain optimised at all times.

One of the new blower technologies Gael Force will be considering for ongoing and new projects is the Robox Aqua from Gardner Denver. Designed to fulfil the specific requirements of the aquaculture industry, the new rotary lobe blower offers an innovative, space-saving design, with three side-by-side units taking up the same space as two conventional blowers. Direct coupling prevents transmission efficiency losses, while also reducing the costs associated with servicing. In addition, the blower is available with an improved noise enclosure, plus its modular and stackable design enables the units to be installed on scaffold structures. This is ideal for barges with only very limited space available.

Gardner Denver is also supplying a number of compressors to Gael Force, which will provide high quality compressed air for a range of services. This includes conditioning, which ensures the cleanliness of compressed air to help extend the service life of pneumatic components, allow aeration during farm treatments and assist in controlling operational processes.

A Trusted Supplier

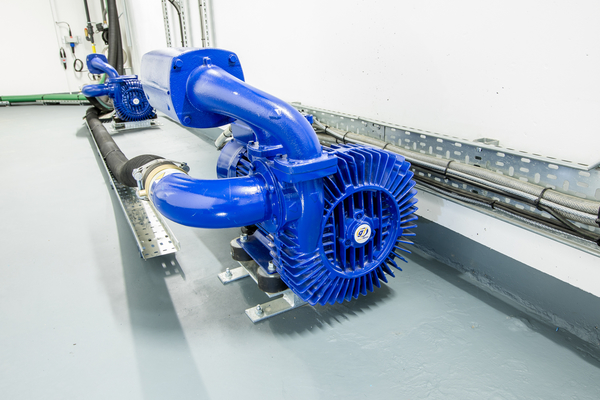

GBH8 Aqua Side Channel Blower installation
Neil MacDonald, Project and Design Engineer at Gael Force Group, explains: “There is a bigger drive than ever before to accommodate more and more equipment on feed barges, which help manage the health and handling of the livestock, as well as deliver the on-board operations. At the same time, as the level of requirement has increased on feed barges, so too has the demand for compressed air.

“As a result, space is really at a premium, and we need efficient blower and compressor technology that we can depend on. We were impressed with Gardner Denver’s range of rotary lobe blowers, which already have an excellent reputation in the aquaculture sector, as well as the company’s side channel blowers and compressed air systems.

“No matter the application, unit size has been a prime consideration here. All products meet this critical requirement, offering technologies with a compact design and small footprint, coupled with excellent performance.

“Gardner Denver has been engaged with us from the very beginning, bringing its extensive experience and innovation to the table. The company has been really easy to work with, proving themselves to be a very trusted supplier.”

Strengthened Relationships

Umberto Onetti, Aquaculture Key Account Manager at Gardner Denver, adds: “Our ability to offer a ‘OneAir’ solution really sets us apart from the competition. Whether it is rotary lobe blowers, side channel blowers or a compressed air system, our extensive portfolio means we can offer the right solution to meet your industrial air needs.

“The agreement with Gael Force is also a great example of a company that has understood the efficiencies that can be realised from working with a single industrial air supplier. From lower administration costs and better terms through volume, to strengthened relationships with a single supplier that knows your business’s needs intimately, we can help meet all of Gael Force’s industrial air requirements.”
