Oil Lubricated Rotary Vane Vacuum Pumps

V-VCS | An Engineered Evolution

Our latest evolution in our rotary vane vacuum design, the VCS models are engineered to improve overall performance and lower the total cost of ownership while reducing weight, noise, and size which makes them easily adaptable and retrofittable to a wide range of OEM machines. With various configurations available, our VCS rotary vane vacuum pumps offer capacities ranging from 30 to 903 cfm and an ultimate vacuum of 29.91 inHg. Contact Elmo Rietschle to find the model best suited for your application.

Contact Us
Request a Quote Request Service Parts or Support
Share

Product Overview

V-VCS | Vane Pumps With A Revolutionized Design

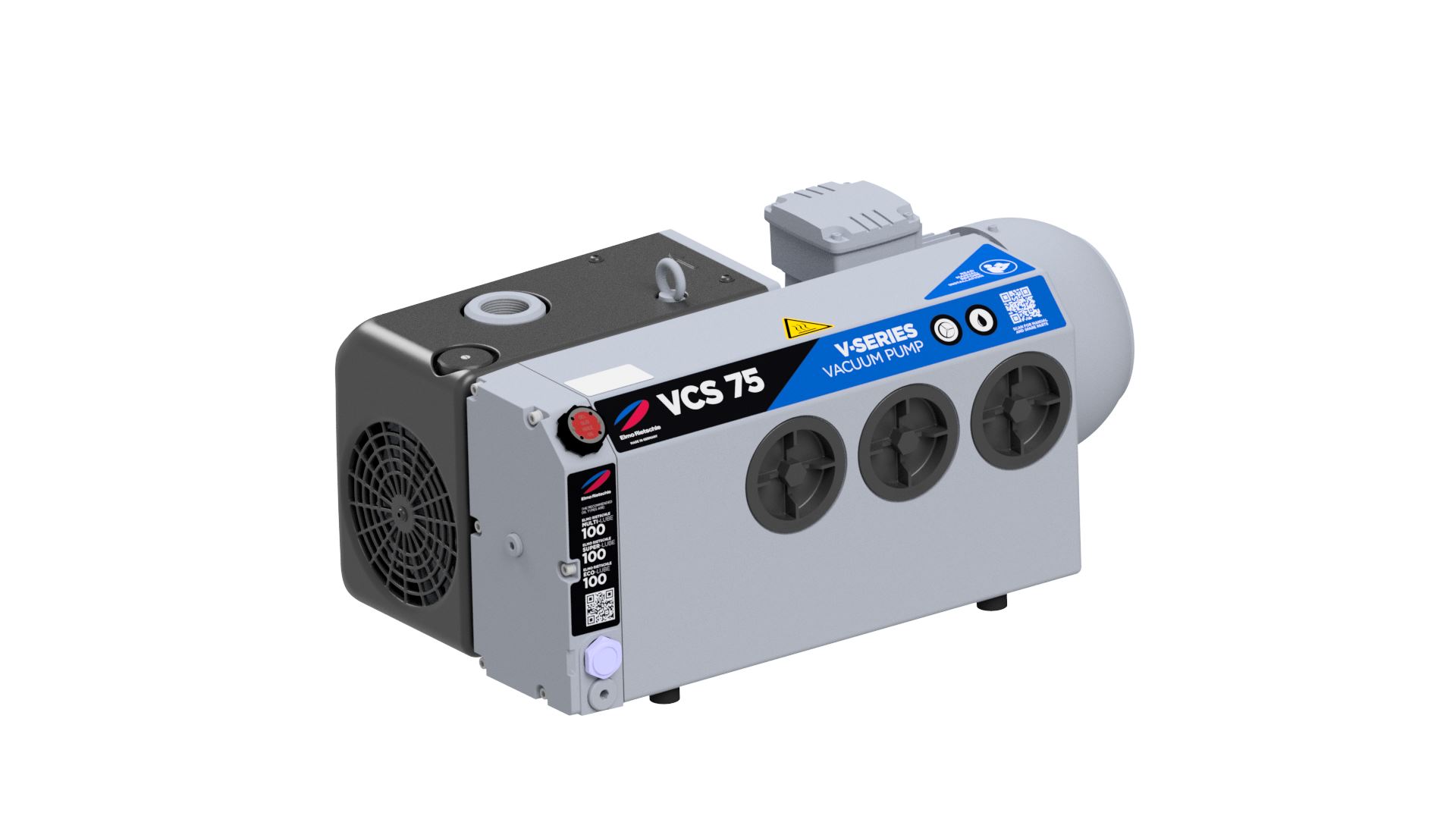

The VCS models feature oil lubricated rotary vane vacuum pumps with capacities rangingLine drawing of VCS Rotary Vane Vacuum Pump from 30 to 903 cfm and an ultimate vacuum of 29.91 inHg. With enhanced design features, backed by decades of Elmo Rietschle expertise, VCS provides the lowest cost of ownership for an oil lubricated vane pump while weight, noise, and size reductions make them easily adaptable and retrofittable to a wide range of OEM machines.











Benefits For Diverse Applications

This evolutionary design offers:

  • Design for the OEM market, the new VCS model can be easily retrofitted into most machines

  • Reduced size and weight

  • Lower heat and noise emissions

  • Lower lifetime costs with a reduction in filter requirements with no drop in oil particulate removal whilst consequently reducing maintenance requirements

  • Reduced oil consumption also combines to make this machine one our most eco-friendly oil lubricated machines available

  • Design for the OEM market, VCS models can be easily retrofitted into most machines

VCS oil lubricated rotary vane pumps can be used in a variety of industrial applications including packaging, plastics, pharmaceuticals, and food processing. There are options for customization to fit specific operational requirements. Contact Elmo Rietschle for help choosing the right model to fit your needs.

V-VCS | Technical Features

VCS Technical Information:

  • Volume flow capacities ranging from 30 to 903 cfm (100 to 360 m3/hr)

  • Ultimate vacuum 0.5 mbar (abs.)

  • Noise emissions as low as 67 dB(A)

  • Weight without motor 100 kg

  • IE3 and IE4 motor variants are available including 4 kW, 5.5 kW and 7.5 kW as required

  • Fitted as standard with flange motor

  • Bearings on both sides of the rotor

  • Oil/air heat exchanger, fine mesh filter, vacuum non-return valve on suction side, gas ballast valve, protection cover and oil separator are standard

XD-Versions with high water vapor tolerance and high resistance to solvents are also available.

Technical Specifications
Elmo Rietschle’s V-Series of oil lubricated rotary vane vacuum pumps offer a wide range of performance suitable for a variety of industrial applications.
