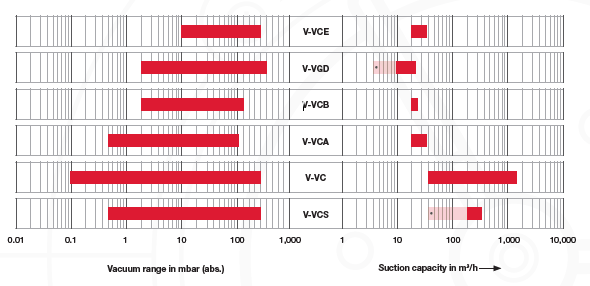

Oil Lubricated rotary vane vacuum pumps with capacities ranging from 40 to 1,535 m³/h and an ultimate vacuum of 0.5 mbar (abs.)
Covered by Care3 Warranty
Oil lubricated rotary vane vacuum pump with capacities ranging from 200 to 360 m³/hr and an ultimate vacuum of 0.5 mbar (abs). The VCS provides the lowest cost of ownership for an oil lubricated rotary vane vacuum pump. Whilst weight, noise and size reductions make this an industry leading solution.
Covered by Care3 Warranty
Oil lubricated rotary vane vacuum pumps with capacities from 4 to 24 m³/h. The ultimate vacuum 2 mbar (abs.). Needs little space thanks to overhung rotor design and integral motor. Fitted as standard with fine mesh filter, vacuum non-return valve and oil separator.
Also known as ‘oil flooded vacuum pumps’ or ‘Oil Sealed Vacuum Pumps’, oil lubricated vacuum pumps use oil to create an effective seal. This enables lower levels of vacuum to be reached.
Lubrication inside the machines also helps prevent wear of internals such as blades (vanes), rotor, housing and bearings. The oil in the pump lowers operating temperatures by reducing friction between rotating components and the internal wall of the housing. The oil protects against corrosion and keeps the compression chamber free of impurities.
Our rotary vane vacuum pumps are used in a wide variety of industrial applications. These are some of the advantages:
Oil Lubricated Rotary Vane vacuum pumps are the most common vacuum pump used in industry today. Elmo Rietschle offers a range of oil lubricated rotary vane vacuum pumps, each suited to the particular requirements of individual vacuum applications.
Speak to our vacuum experts about the right solution for your application.
