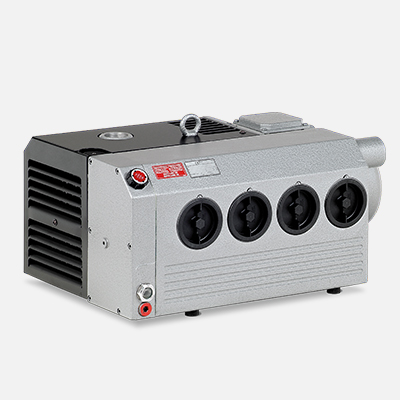

Oil lubricated rotary vane pumps V-VC700-900

The staple in the oil lubricated rotary vane market is the Elmo Rietschle V-Series. Utilizing centrifugal force to create vacuum, this tried and true VC 700 and VC 900 have decades of Elmo Rietschle expertise incorporated into this robust design. This oil-flooded product can maintain vacuum levels as low as 29.91 inHg, having a maximum flow of 586 CFM. This product provides multiple features that benefit each industry it serves.

Contact Us
Request a Quote Request Service Parts or Support
Share

Features

  • Oil flooded rotary vane vacuum pump.
  • Flange motor.
  • Bearings on both sides of the rotor.
  • Oil/air heat exchanger are standard.
  • XD version for heavy-duty applications suitable for wet and humid processes.
  • Equipped with fine mesh filter, vacuum non-return valve, gas ballast valve, protection cover and oil separator as standard



Benefits

  • Cost effective pump
  • More affordable than dry contactless machines
  • No sacrifice in flow or end vacuum
  • Suitable for industrial applications

Performance

  • Volume flow 494 to 586 cfm
  • Ultimate vacuum 0.1 mbar (abs)
