Oil Lubricated Rotary Vane Pumps

Advantages at a glance

• Oil flooded rotary vane vacuum pump.
• The ultimate vacuum can be selected by operator at either 2 mbar (abs.) for fine vacuum or 10 mbar (abs.) for coarse vacuum.
• Needs little space thanks to overhung rotor design and integral motor.
• Fitted as standard with fine mesh filter, vacuum non-return valve and oil separator.
• Very quiet operation.

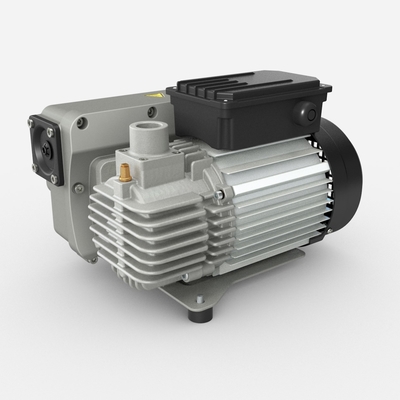

V-VGD | Quiet and Reliable Operation

Elmo Rietchle's engineering expertise ensures that our oil-lubricated rotary vane pumps exceed industry standards for durability and performance. The V-VGD vane pumps are an ideal solution when your application requires consistent, reliable, and quiet performance.

Benefits and Features

Our oil-sealed vane pumps offer significant advantages compared to other pumps on the market. With their long vane life, low noise levels, easy serviceability, and high water vapor tolerance, the V-VGD models are used in a wide variety of industrial applications. With capacities ranging from 6 to 11 cfm (10 to 24 m3/h) and ultimate vacuum of 29.86 inHg (gauge) [2 mbar (abs.)], these pumps are engineered for reliable performance. Contact us to discuss your application requirements.

• Ultimate vacuum up to 2 mbar (abs.) / 29.86 inHg

• Requires less space with its overhung rotor design and integral motor

• Fitted as standard with fine mesh filter, vacuum non-return valve and oil separator

• Offering very quiet operation
