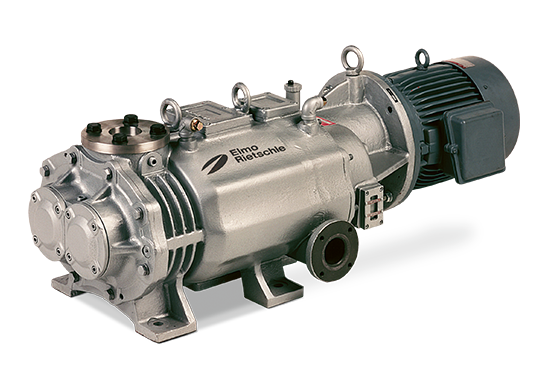

Dry running screw vacuum pump - VSB800

This industrial sized screw pump has a maximum flow of 440 cfm. Operating at a deep vacuum as low as .02 Torr, this screw pump thrives in chemical applications, where standard industrial products cannot. Standard pump uses Kalrez o-rings, as well as PEEK coating to ensure this pump runs efficiently in your process. The VSB 800 is powered by a C-Face NEMA 20 hp motor.

Contact Us
Request a Quote Request Service Parts or Support
Share

Features

  • Highly Engineered Design
  • Industry leading PEEK coating
  • Ideal for chemical processes

Benefits

  • Extremely deep base pressure of 0.075 Torr
  • Suitable for applications requiring vacuum levels that no other technology can achieve
  • Able to be used in combination with our VWP vacuum booster to achieve and maintain vacuum levels well into the single millitorr range
  • Ideal for off-gassing lower vapor pressure volatiles at lower temperatures

Performance

  • Volume Flow up to 440 cfm
  • Maximum Vacuum .020 Torr
