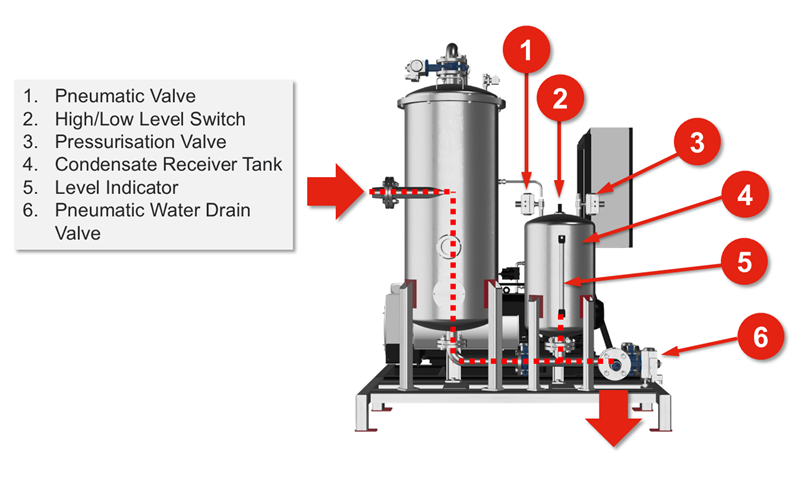

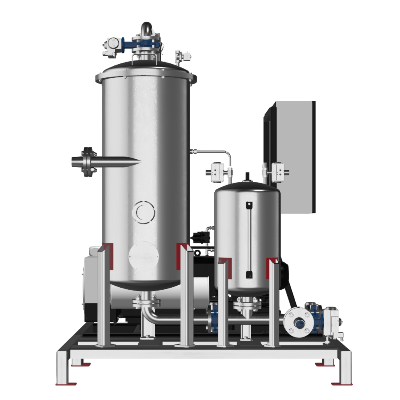

Dry Screw Bottling Solution Elmo Rietschle X-VSI Front View

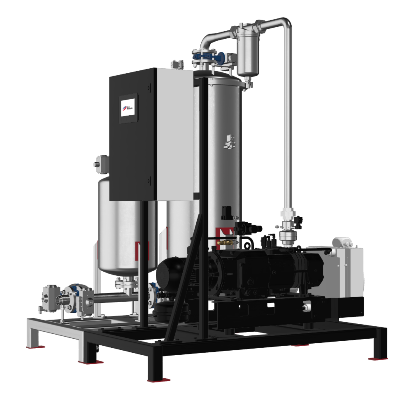

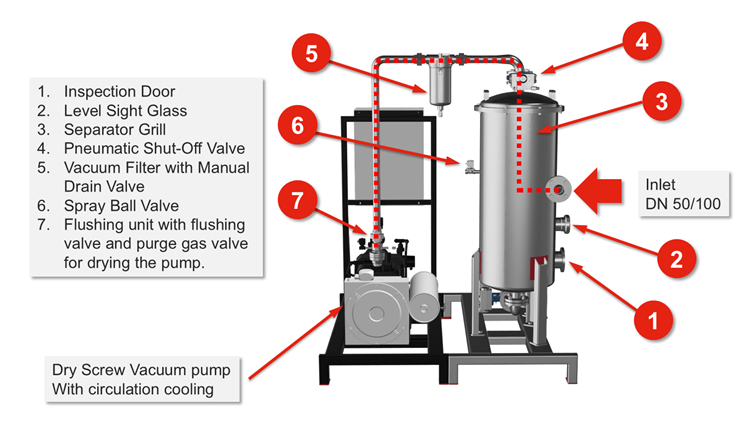

Dry Screw Bottling Solution Elmo Rietschle X-VSI Rear View

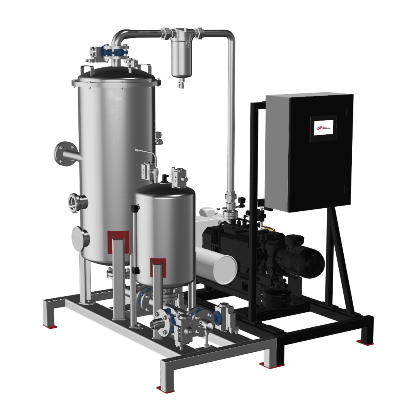

Dry Screw Bottling Solution Elmo Rietschle X-VSI Side View

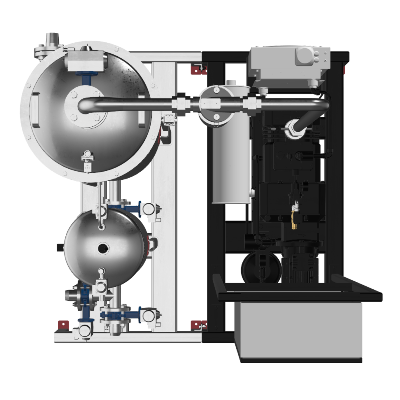

Dry Screw Bottling Solution Elmo Rietschle X-VSI Top View
Dry Screw Bottling Solution Elmo Rietschle X-VSI Front View
Dry Screw Bottling Solution Elmo Rietschle X-VSI Rear View
Dry Screw Bottling Solution Elmo Rietschle X-VSI Side View
Dry Screw Bottling Solution Elmo Rietschle X-VSI Top View
Back to the product list

X-VSI Dry Screw Vacuum Bottling System

SAVING WATER IN BOTTLING PROCESSES

Contact Us
Request a Quote Request Service Parts or Support
Share

X-VSI System Overview

X-VSI Dry Screw Vacuum System incorporating the Elmo Rietschle S-VSI Screw Vacuum Pumps providing:

  • Low energy consumption due to the highly efficient variable pitch screw technology and IE4 motor.
  • Zero water consumption as the pumps are equipped with an air/water recirculation cooling system.
  • Temperature and pressure monitoring of the integrated cooling water circuit for maximum process reliability.
  • Outstanding Heavy Duty application tolerances - XD version with ProCoat coating of the wetted parts for superior corrosion resistance.
  • Variable speed drive (VSD) allows precise set-point pressure control for optimum adaptation to the process.
Type Suction capacity
Simplex S-VSI 100-1 XD 110 m³/h
Simplex S-VSI 301-1 XD 360 m³/h
Duplex S-VSI 100-2 XD 220 m³/h
Duplex S-VSI 301-2 XD 720 m³/h

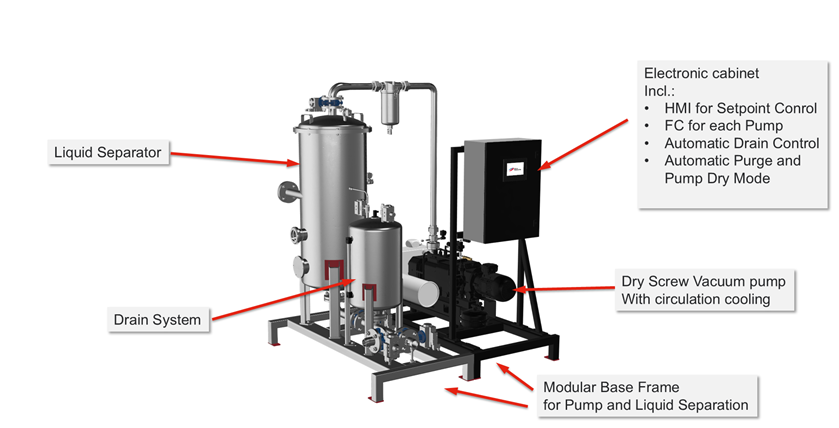

X-VSI System Overview

X-VSI Dry Screw Vacuum Bottling System Overview

X-VSI Dry Screw Vacuum Bottling System

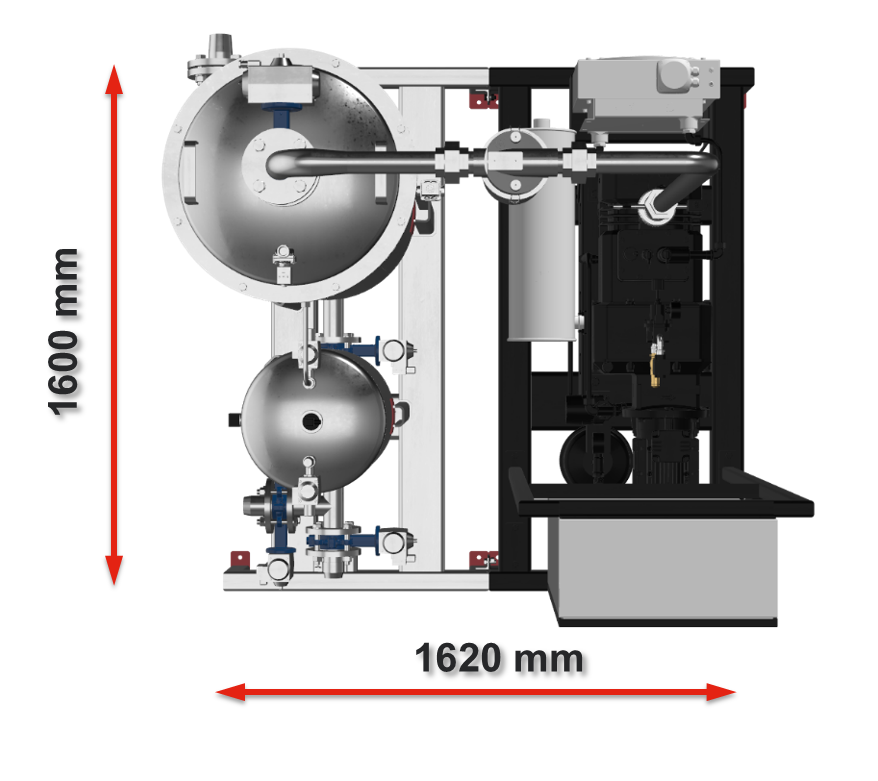

System Footprint

Compact footprint only 2.6m

Dry Screw Bottling Solution Elmo Rietschle X-VSI Footprint

Liquid Ring System vs Dry Screw System Comparison

Typical Liquid Ring Vacuum pump system using in bottling process

Filler 1 Water flow 1.8 m³/h
Power 18.6 kW
CO2 0.6 m³/h
Filler 2 Water flow 2.45 m³/h
Power 37.3 kW
CO2 0.8 m³/h



New Vacuum pump system with Dry Screw

Filler 1

Water flow

Zero
Power 9.3 kW
CO2 0.5 m³/h
Filler 2 Water flow Zero
Power 9.3 kW
CO2 0.3 m³/h
