Elmo Rietschle offers comprehensive blower and vacuum pump repair services delivered by our global network of factory trained engineers. Our expert after sales care packages will keep your Elmo Rietschle equipment up and running.
We offer a range of service options to suit your needs. These include:
Regular equipment servicing is proven to significantly reduce total cost of ownership (TCO) and dramatically increase asset life. It also mitigates the risk of unforeseen downtime due to breakdown.

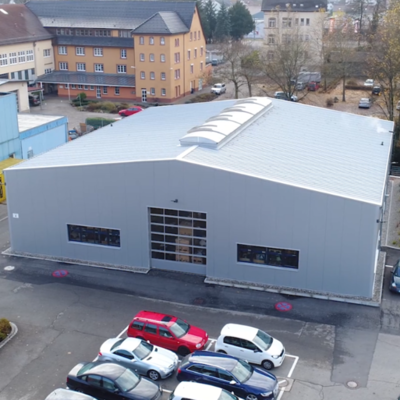

We offer a factory overhaul service that will rebuild your machine to as close to new as possible. Learn more about our Repair Shop below.
We provide rental options if it is required to remove the machine from the process for an extended period of time. Upon returning the loaned equipment, you are only responsible for paying shipping and maintenance. Should you have a short-term need for increased vacuum or pressure, we can provide cost effective leased equipment.
We offer a wide range of service kits that include all components for various maintenance and service needs. Everything included in one simple box.
Vacuum Pump Repair & Maintenance Kits Available include:
Extended Kits
Wearing Parts Kits
Gasket Kits
Overhaul Kits
Firstly, alway consult the manual before taking any steps to maintain and repair your Elmo Rietschle equipment. You must ensure the machine is safe before starting.
Regular maintenance work must be carried out in order to ensure safety.
Maintenance intervals also depend on the specific application demands on the machine.
Observe the safety instructions described in "Safety instructions for installation, commissioning
and maintenance" found in the operating instruction which can be found via our product page.
Performance of the machine is reduced by a polluted air filter and insufficient maintenance.
This can cause damage to the machine.

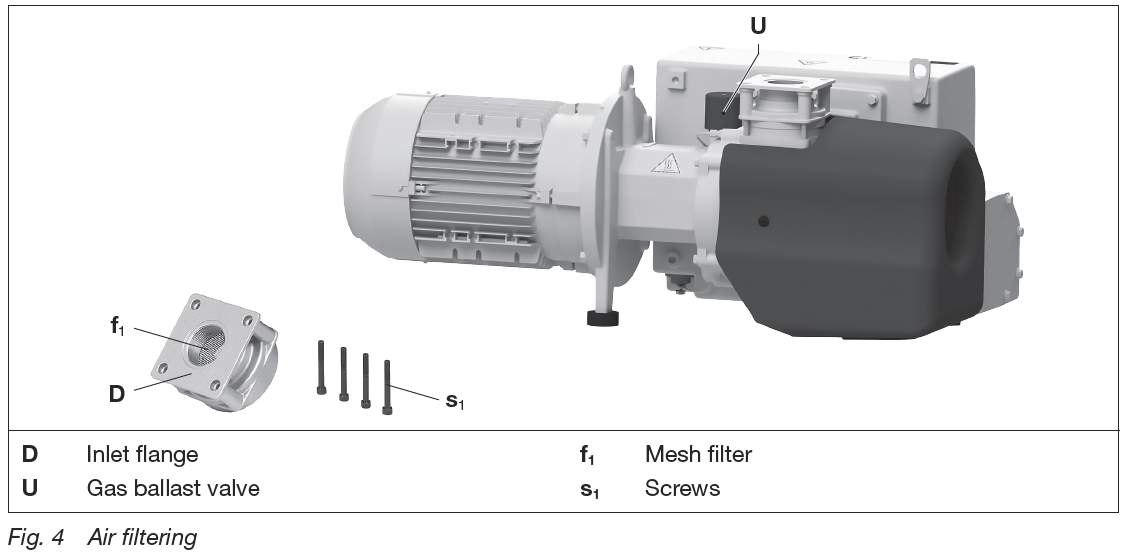

In applications with high levels of contaminants in inlet medium, the mesh filter (Fig. 4/f1) has to be cleaned more often. The inlet filter is cleaned by washing or blowing off the debris. If it cannot be cleaned effectively it must be replaced. Check for build of debris and matter that could block or damage the pumps air filters and reduce equipment performance.
Always consult the manual before taking any steps to maintain and repair your Elmo Rietschle equipment. You must ensure the machine is safe before starting.
Risk of injury due to slipping and falling!
The floor can be slippery due to leaked oil and cause slipping, tripping or falling:
Always change the oil when the machine is at operating temperature and in a
ventilated area. If it is not completely emptied, the refilling quantity is reduced.
If you change the type of oil, empty the oil tank completely.
A minimum oil quantity may escape from the vent screw due to pressure compensation.
If larger quantities of oil escape, wash the internal filter of the vent screw.
The waste oil must be disposed of in compliance with the local environmental protection regulations.
Check the oil level:

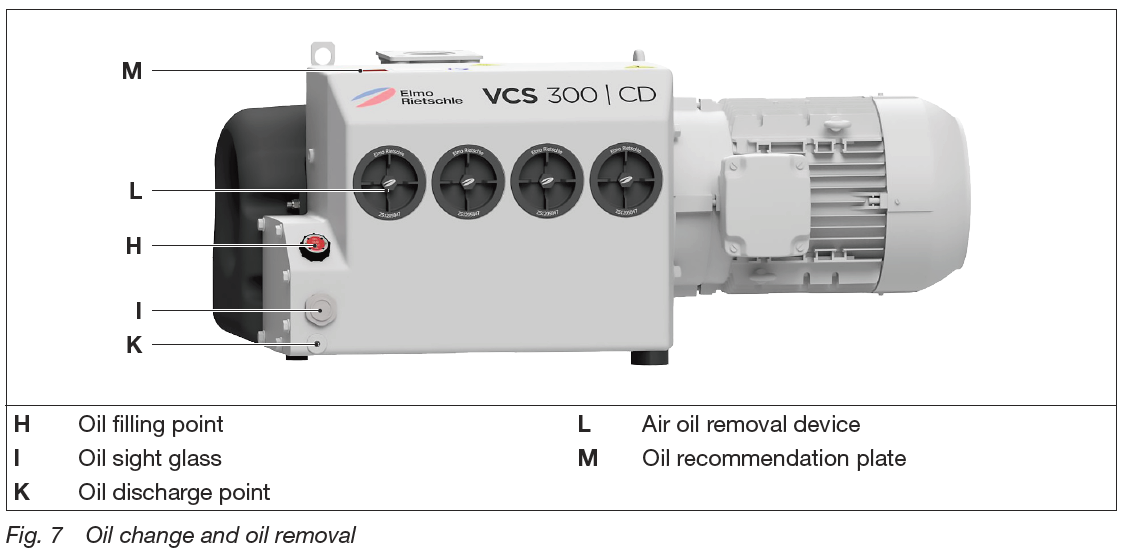

a) Check the oil level in the sight glass (Fig. 7/I) at least once daily.
b) To refill the oil, consult the maintenance manual for the machine or contact your local Elmo Rietschle Service Team.
Our rotary vane vacuum pump repair service offers a comprehensive service and maintenance program dedicated to oil lubricated rotary vanes. The service is designed to maintain machine performance, reduce oil particulate carryover and ensure increased asset life.
Firstly, alway consult the manual before taking any steps to maintain and repair your Elmo Rietschle equipment. You must ensure the machine is safe before starting.
Regular maintenance work must be carried out in order to ensure safety.
Maintenance intervals also depend on the specific application demands on the machine.
Observe the safety instructions described in "Safety instructions for installation, commissioning
and maintenance" found in the operating instruction which can be found via our product page.
Performance of the machine is reduced by a polluted air filter and insufficient maintenance.
This can cause damage to the machine.
In applications with high levels of contaminants in inlet medium, the mesh filter (Fig. 4/f1) has to be cleaned more often. The inlet filter is cleaned by washing or blowing off the debris. If it cannot be cleaned effectively it must be replaced. Check for build of debris and matter that could block or damage the pumps air filters and reduce equipment performance.
Always consult the manual before taking any steps to maintain and repair your Elmo Rietschle equipment. You must ensure the machine is safe before starting.
Risk of injury due to slipping and falling!
The floor can be slippery due to leaked oil and cause slipping, tripping or falling:
Always change the oil when the machine is at operating temperature and in a
ventilated area. If it is not completely emptied, the refilling quantity is reduced.
If you change the type of oil, empty the oil tank completely.
A minimum oil quantity may escape from the vent screw due to pressure compensation.
If larger quantities of oil escape, wash the internal filter of the vent screw.
The waste oil must be disposed of in compliance with the local environmental protection regulations.
Check the oil level:
a) Check the oil level in the sight glass (Fig. 7/I) at least once daily.
b) To refill the oil, consult the maintenance manual for the machine or contact your local Elmo Rietschle Service Team.
Elmo Rietschle offers comprehensive blower and vacuum pump repair services delivered by our global network of factory trained engineers. Our expert after sales care packages will keep your Elmo Rietschle equipment up and running.
We offer a range of service options to suit your needs. These include:
Our high quality genuine spare parts have been designed by our expert vacuum engineers to work seamlessly with our equipment. Our Genuine Spare Parts are the same parts used when the machine was originally manufactured at our plants in Germany. Replacing like-for-like is the only way to keep your machine operating at optimum performance and minimize unexpected downtime.
Consult the relevant maintenance manual for your machine to see how to clean the mesh filter. Alternatively contact your local Elmo Rietschle Service Team.
| Monthly Checks |
|
| 5,000 Hour Checks |
|
| Monthly / Every 6 Months Checks |
|
| Depending on how dirty the discharged medium is |
|
| Annual Checks |
|
Below are typical Dry Running Claw Vacuum Pump maintenance tasks and expected intervals based on average operating environment and annual usage.
Our components are designed to fit harmoniously with the product as intended, and are made from the highest quality materials. All genuine spare parts are covered by a 12 month warranty to give you the peace of mind on your investment.
Maintenance intervals also depend on the demands placed on the machine. Each machine will have different maintenance requirements. The applications and environment that the machines operate in will almost affect the required maintenance intervals.
Also the type of technology, oil lubricated and dry running equipment have different maintenance requirements. Regular maintenance work must be carried out in order to ensure safety.
Below is a typical oil lubricated rotary vane vacuum pump maintenance tasks. The expected intervals are based on averaging operating environment and annual usage.
Regular equipment servicing is proven to significantly reduce total cost of ownership (TCO) and dramatically increase asset life. It also mitigates the risk of unforeseen downtime due to breakdown.
| Daily Checks | Check the oil level |
| Monthly Checks |
|
| 500 - 2,000 h or One Year (whichever comes first) Oil change) |
|
| At 2,000 Operating Hours |
|
| Annual Checks |
|
We offer a wide range of service kits that include all components for various maintenance and service needs. Everything included in one simple box.
Vacuum Pump Repair & Maintenance Kits Available include:
Extended Kits
Wearing Parts Kits
Gasket Kits
Overhaul Kits
