Claw Vacuum Pumps and Compressors

C-Series – Dry running, contact free vacuum and compressor air for industrial applications

Claw Vacuum Pumps and Compressors

Our dry-running claw technology generates contact-free vacuum or compressed air efficiently and economically due to the principle of internal compression. This leads to considerable energy savings, reduced power consumption, and lower cost of ownership overall compared to the traditional rotary lobe design without internal compression.

The claws of the C-Series feature an optimized, high precision on shape-claws roll together without contact, synchronized by a precision gear set. The compression is contactless and oil-free. Special seals separate the compression chamber and gearbox.

The claw rotors control the transportation of the compressed gas by opening and closing the inlet and outlet channels. Thus no sealing fluid within the compression chamber is needed.

The overhung rotor design in all sizes up to model 300 is another outstanding feature of this technology. We hold the patent on the newly designed triple lobe rotors with medium air compression; for the first time, vacuum and pressure are being created in one stage, simultaneously.



Features

  • High efficiency
  • Contact-less oil-free operation
  • Air Cooled
  • Precision German designed
  • Variable speed drives available
  • Low sound level
  • Patented triple lobe rotors (pressure/vacuum version)
  • Pressure and vacuum combined in one compression stage

C-Series: Claw Vacuum Pumps by Elmo Rietschle

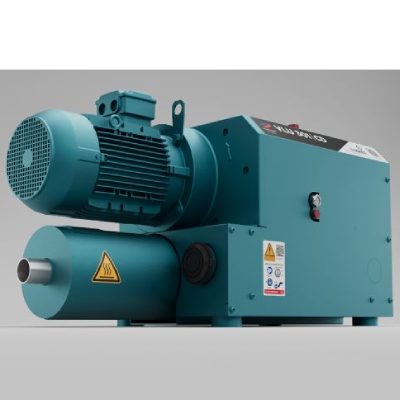

C-VLU Claw Vacuum Pumps

The VLU is the pinnacle of dry running claw vacuum technology, with ultimate vacuum as low as 30 mbar (abs.). Utilising oil free technology, the VLU has virtually no maintenance and a low total cost of ownership with no oil or filters to replace frequently.
The VLU capacities are from 62 to 1140 m3/hr. It is the sustainable vacuum pump for a wide variety of applications due to its low energy consumption, zero air contamination, and no used oil or filters to dispose of.

C-VLU compressors

C-VLR Claw Vacuum Pumps

Capacities ranging from 60 to 1140 m3/hr and ultimate vacuum at continuous operation is 100, 150 or 200 mbar (abs). Highly efficient, oil-less and contact free operation. Excellent pumping capacities throughout the entire vacuum range.

Integrated air-cooling without the need for water cooling. Available with optional variable speed drive and low maintenance; wide range of applications.

C-VLR301

C-DLR Claw Compressors

Capacities ranging from 56 to 600 m3/hr; maximum pressure in continuous operation up to max. 2.0 bar. Highly efficient, oil-less and contact free operation. Excellent pumping capacities throughout the entire vacuum range. Integrated air-cooling without the need for water cooling. Available with optional variable speed drive and low maintenance; wide range of applications.

C-DLR501 compressors

C-KLR Claw Combination Pressure Vacuum Pumps

Capacities ranging from 80 to 140 m3/hr, vacuum up to 18 in, Vacuum up to - 0.6 bar and pressure up to+ 1.0 bar. Highly efficient, oil-less and contact free operation.
Vacuum and pressure operating points are virtually independent of each other with excellent flow capabilities. Integrated air-cooling without the need for water cooling. Integrated after cooler for low temperature compressed air delivery. Low maintenance; wide range of applications.

C-KLR pressure vacuum pumps

Performance & Technical Specifications: Dry Claw Vacuum Pumps and Compressors

With the C-VLR claw vacuum pumps and C-DLR claw compressors, the following ultimate pressures are attainable during continuous operation; vacuum up to 27 in. HgV for permanent operation and pressure up to 32 psig.

Applications

Quiet, efficient, and compact, our dry claw vacuum pumps and compressors satisfy demands from modern manufacturing environments: low noise level, high energy consumption efficiency and best use of available space. Ultimate vacuum pumps, designed for the following applications:



Explore Our Industries

How it Works: Dry Claw Pumps

Much like rotary vane and rotary lobe pumps, the claw compressors and vacuum pumps of the C-Series are based on a static compression system. In contrast to rotary lobes, compression happens internally by volume reduction.

A claw pump consists of two rotors, which turn in opposite directions in a compressor housing  without contact with very tight clearances. They are synchronized via a precision gear. As the claw moves over the suction connection and the axial suction channel inlet the gas is sucked into the compression/pumping chamber.

As the rotors revolve, the gas moves from the suction side to the pressure side. It is then compressed by the reduction of the volume between the rotors until the lower rotor uncovers the discharge channel. This “internal compression” leads to high differential pressures at efficiencies of more than 60 %.

Afterwards the pre-compressed gas is discharged via the pressure connection. To remove the heat generated by the compression process, cooling air is sucked in between the compression housing and a silencing cover before it leaves the pump

Claw Vacuum Pump Cut Section
