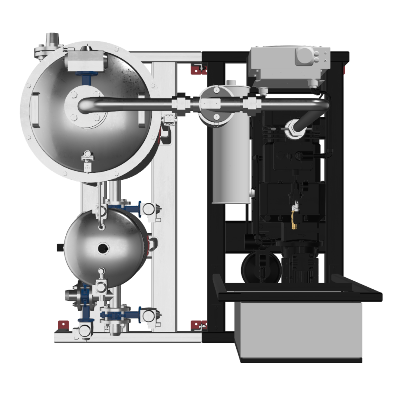

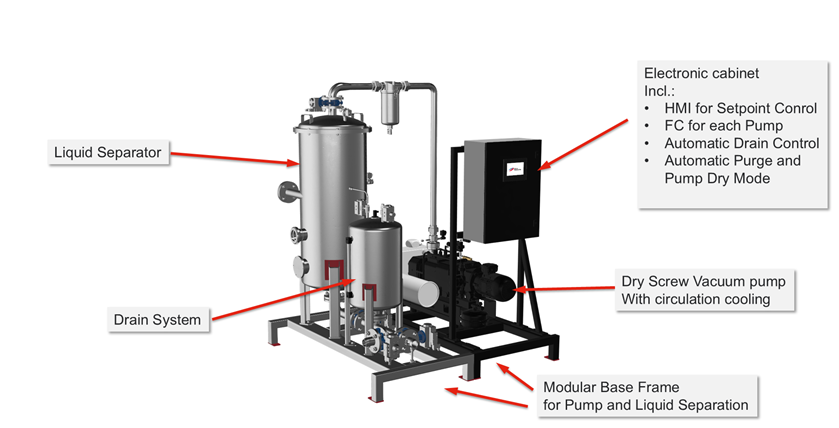

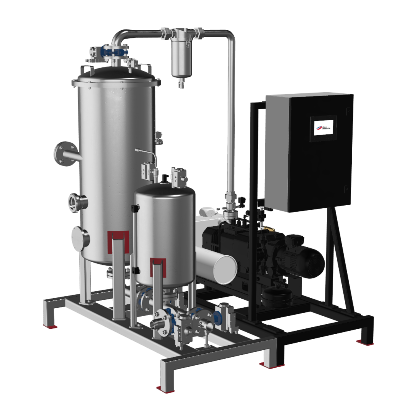

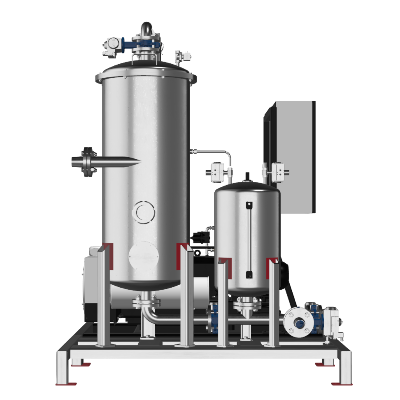

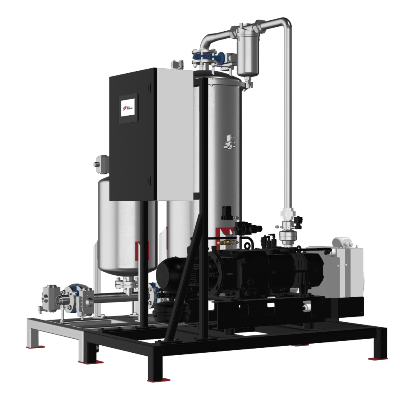

X-VSI Dry Screw Vacuum System incorporating the Elmo Rietschle S-VSI Screw Vacuum Pumps providing:
Type | Suction capacity |
Simplex S-VSI 100-1 XD | 110 m³/h |
Simplex S-VSI 301-1 XD | 360 m³/h |
Duplex S-VSI 100-2 XD | 220 m³/h |
Duplex S-VSI 301-2 XD | 720 m³/h |

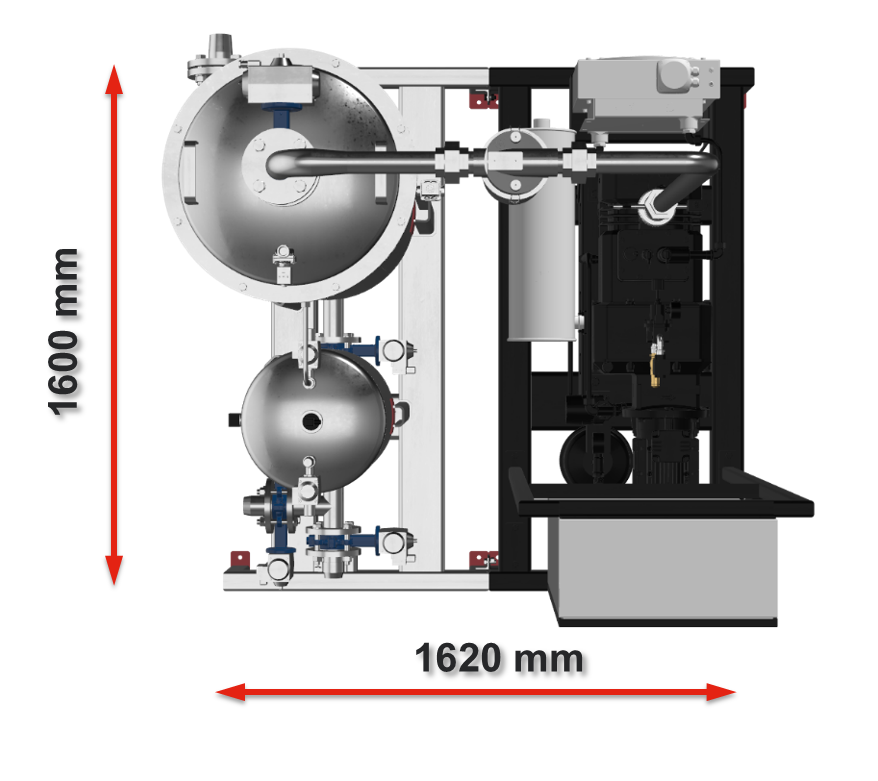

Compact footprint only 2.6m
Typical Liquid Ring Vacuum pump system using in bottling process
Filler 1 | Water flow | 1.8 m³/h |
Power | 18.6 kW | |
CO2 | 0.6 m³/h | |
Filler 2 | Water flow | 2.45 m³/h |
Power | 37.3 kW | |
CO2 | 0.8 m³/h |
New Vacuum pump system with Dry Screw | ||
Filler 1 | Water flow | Zero |
Power | 9.3 kW | |
CO2 | 0.5 m³/h | |
Filler 2 | Water flow | Zero |
Power | 9.3 kW | |
CO2 | 0.3 m³/h |
